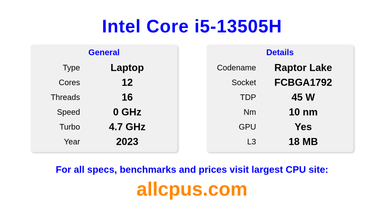

Intel Core i5-13505H
12C / 16T 0 / 4.7 GHz 2023 laptop iGPU
The Intel Core i5-13505H is a Intel laptop processor from the Intel Core lineup, built on the Raptor Lake architecture and released in 2023. This CPU features 12 cores, a base clock of 0 MHz, maximum turbo frequency of 4700 MHz and 18 MB of L3 cache. Manufactured using 10 nm process technology. The Intel Core i5-13505H is designed for the BGA1792 socket. It includes integrated Intel® Iris® Xe Graphics eligible graphics.
Specs
Type
Laptop
Cores
12
Threads
16
Speed
0 GHz
Turbo
4.7 GHz
Release Date
2023
GPU
Yes
Socket
BGA 1792
Current Price
Release Price
L3
18 MB
Base TDP
35 - 45 W
Max TDP
115 W
Nm
10 nm
Unlocked
-
Official Site
| Type | Laptop |
| Cores | 12 |
| Threads | 16 |
| Speed | 0 GHz |
| Turbo | 4.7 GHz |
| Current Price | |
| Release Price | |
| Release Date | 2023 |
| GPU | Intel® Iris® Xe Graphics eligible |
| Socket | BGA1792 |
| L3 | 18 MB |
| Base TDP | 35 - 45 W |
| Max TDP | 115 W |
| Nm | 10 nm |
| Unlocked | - |
| Official Site | intel.com |
| Performance Tier | Core i5 |
| Class | Intel Core |
| Code Name | Raptor Lake |
| Performance Cores | 4 |
| Efficiency Cores | 8 |
| Memory Type | DDR5 |
| Memory Channels | 2 |
| Max Memory | 64 MB |
| Bits | 64-bit |
| tjMax | 100°C |
| PCI Generation | 5 |
| PCI Lanes | |
| L1 Cache | |
| L2 Cache | |
| Product IDs | Tray FJ8071505205000 |
