Intel Core i5-1130G7
4C / 8T 1.8 / 4 GHz 2020 laptop iGPU
The Intel Core i5-1130G7 is a Intel laptop processor from the Intel Core lineup, built on the Tiger Lake architecture and released in 2020. This CPU features 4 cores, a base clock of 1800 MHz, maximum turbo frequency of 4000 MHz and 8 MB of L3 cache. Manufactured using 10 nm process technology. The Intel Core i5-1130G7 is designed for the BGA1598 socket. It includes integrated Intel® Iris® Xe Graphics graphics.

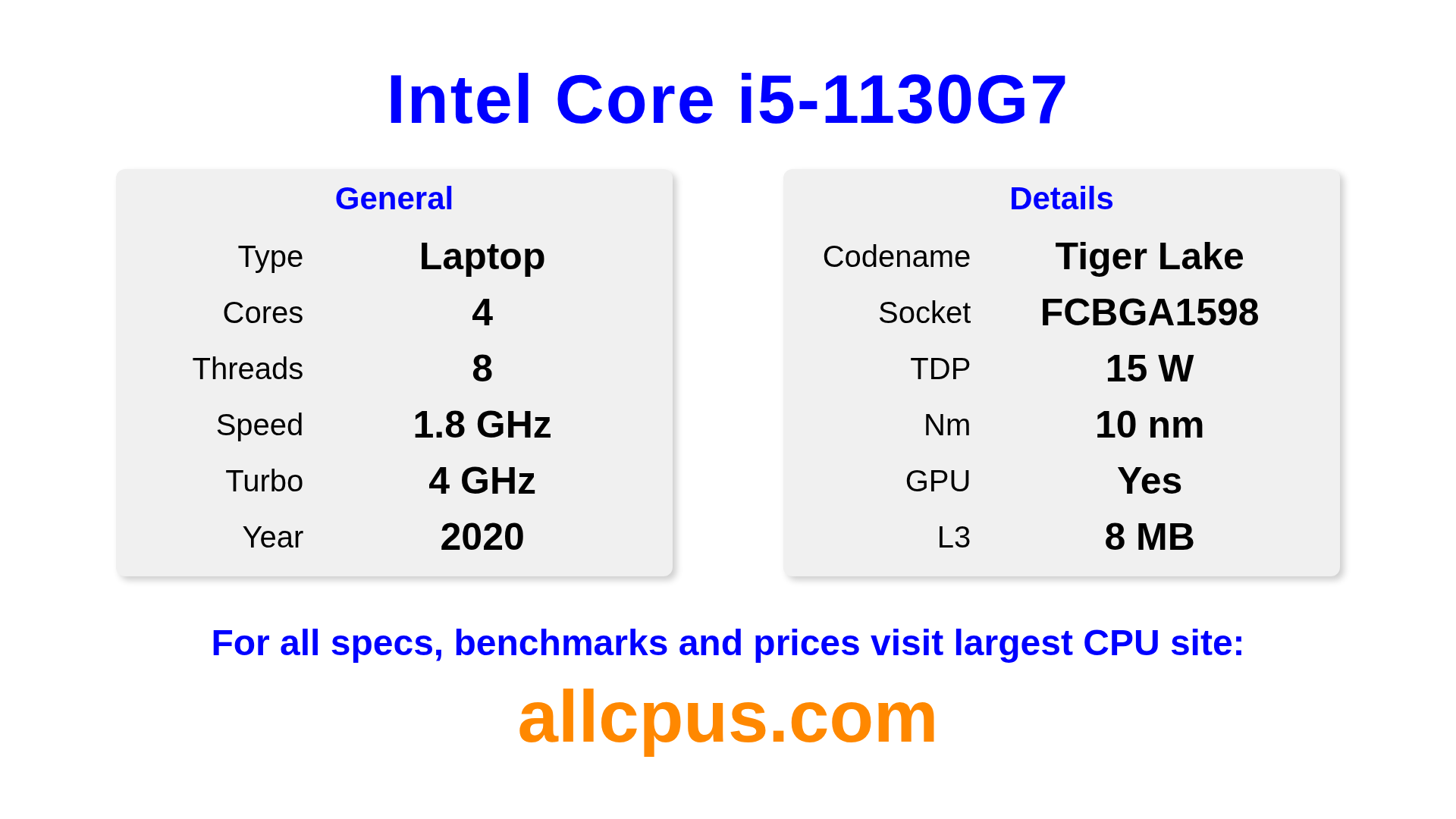

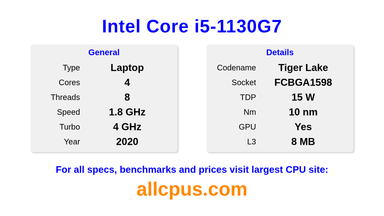

Specs
Type
Laptop
Cores
4
Threads
8
Speed
1.8 GHz
Turbo
4 GHz
Release Date
2020
GPU
Yes
Socket
BGA 1598
Current Price
Release Price
L3
8 MB
Base TDP
15 W
Max TDP
Nm
10 nm
Unlocked
-
Official Site
| Type | Laptop |
| Cores | 4 |
| Threads | 8 |
| Speed | 1.8 GHz |
| Turbo | 4 GHz |
| Current Price | |
| Release Price | |
| Release Date | 2020 |
| GPU | Intel® Iris® Xe Graphics |
| Socket | BGA1598 |
| L3 | 8 MB |
| Base TDP | 15 W |
| Max TDP | |
| Nm | 10 nm |
| Unlocked | - |
| Official Site | intel.com |
| Performance Tier | Core i5 |
| Class | Intel Core |
| Code Name | Tiger Lake |
| Performance Cores | 4 |
| Efficiency Cores | - |
| Memory Type | DDR4 |
| Memory Channels | 2 |
| Max Memory | 32 MB |
| Bits | 64-bit |
| tjMax | 100°C |
| PCI Generation | 4 |
| PCI Lanes | |
| L1 Cache | |
| L2 Cache | |
| Product IDs | Tray FH8069004532404 |
