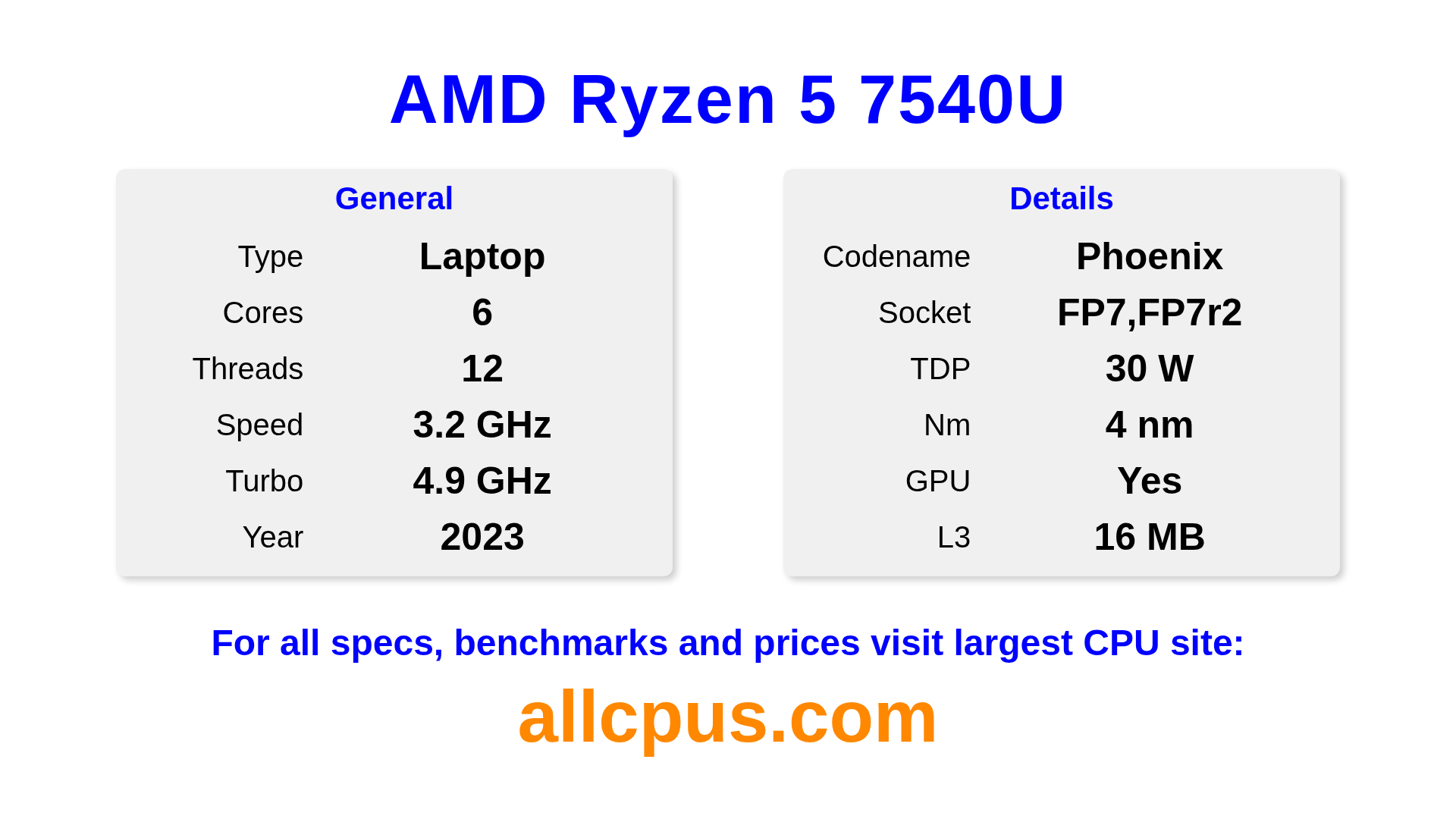

AMD Ryzen 5 7540U
6C / 12T 3.2 / 4.9 GHz 2023 laptop iGPU
The AMD Ryzen 5 7540U is a AMD laptop processor from the Ryzen lineup, built on the Phoenix architecture and released in 2023. This CPU features 6 cores, a base clock of 3200 MHz, maximum turbo frequency of 4900 MHz and 16 MB of L3 cache. Manufactured using 4 nm process technology. The AMD Ryzen 5 7540U is designed for the FP7,FP7r2 socket. It includes integrated AMD Radeon 740M graphics.
Specs
Type
Laptop
Cores
6
Threads
12
Speed
3.2 GHz
Turbo
4.9 GHz
Release Date
2023
GPU
Yes
Socket
FP 7, FP 7r 2
Current Price
Release Price
L3
16 MB
Base TDP
15 - 30 W
Max TDP
Nm
4 nm
Unlocked
-
Official Site
| Type | Laptop |
| Cores | 6 |
| Threads | 12 |
| Speed | 3.2 GHz |
| Turbo | 4.9 GHz |
| Current Price | |
| Release Price | |
| Release Date | 2023 |
| GPU | AMD Radeon 740M |
| Socket | FP7, FP7r2 |
| L3 | 16 MB |
| Base TDP | 15 - 30 W |
| Max TDP | |
| Nm | 4 nm |
| Unlocked | - |
| Official Site | amd.com |
| Performance Tier | Ryzen 5 |
| Class | Ryzen |
| Code Name | Phoenix |
| Performance Cores | 6 |
| Efficiency Cores | - |
| Memory Type | DDR5 |
| Memory Channels | 2 |
| Max Memory | 256 MB |
| Bits | 64-bit |
| tjMax | 100°C |
| PCI Generation | 4 |
| PCI Lanes | 14 |
| L1 Cache | |
| L2 Cache | 6 MB |
| Product IDs | Tray 100-000000957 (FP7r2)100-000000966 (FP7) |
