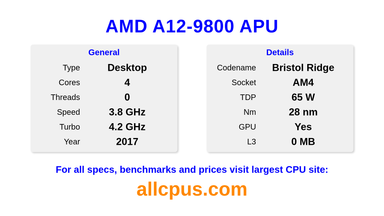

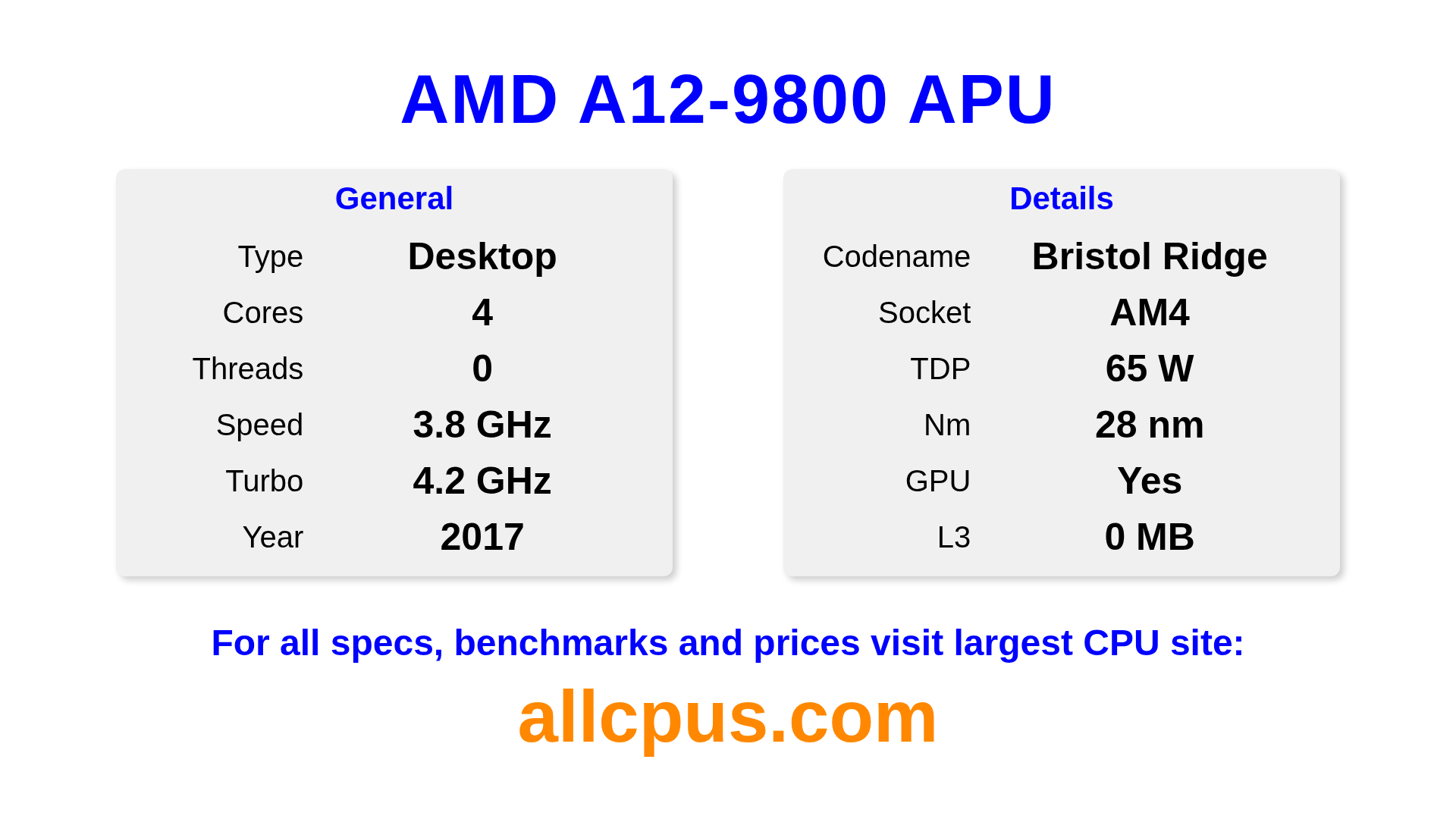

AMD A12-9800 APU
4C / 0T 3.8 / 4.2 GHz 2017 desktop iGPU
The AMD A12-9800 APU is a AMD desktop processor from the A-Series lineup, built on the Bristol Ridge architecture and released in 2017. This CPU features 4 cores, a base clock of 3800 MHz, maximum turbo frequency of 4200 MHz and 0 MB of L3 cache. Manufactured using 28 nm process technology. The AMD A12-9800 APU is designed for the AM4 socket.It supports overclocking. It includes integrated Radeon R7 Series graphics.
Specs
Type
Desktop
Cores
4
Threads
0
Speed
3.8 GHz
Turbo
4.2 GHz
Release Date
2017
GPU
Yes
Socket
AM 4
Current Price
Release Price
L3
0 MB
Base TDP
65 W
Max TDP
Nm
28 nm
Unlocked
Yes
Official Site
| Type | Desktop |
| Cores | 4 |
| Threads | 0 |
| Speed | 3.8 GHz |
| Turbo | 4.2 GHz |
| Current Price | |
| Release Price | |
| Release Date | 2017 |
| GPU | Radeon R7 Series |
| Socket | AM4 |
| L3 | 0 MB |
| Base TDP | 65 W |
| Max TDP | |
| Nm | 28 nm |
| Unlocked | Yes |
| Official Site | amd.com |
| Performance Tier | AMD A-Series |
| Class | A-Series |
| Code Name | Bristol Ridge |
| Performance Cores | 4 |
| Efficiency Cores | - |
| Memory Type | DDR4 |
| Memory Channels | 2 |
| Max Memory | |
| Bits | 64-bit |
| tjMax | 90°C |
| PCI Generation | 3 |
| PCI Lanes | |
| L1 Cache | |
| L2 Cache | 2 MB |
| Product IDs | Boxed AD9800AUABBOXTray AD9800AUM44AB |
